..R žarnica ima na določenem mestu nanos (barvo), ki pa je učinkovita samo v kombinaciji s pravim xenonskim žarometom za D2R žarnice (parabola). Pri navadnih parabolah ni nekega posebnega efekta.

Eno vprašanje, ko smo ravno pri H7R žarnicah...


Namontiral sem nov xenon kit z H7R (4300K) žarnico in ena sveti belo (skoraj rumeno) medtem ko druga malenkost plavkasto.

Zakaj?




Nekje sem sicer prebral (HID troubleshooting), da se zna to zgoditi dokler se žarnica ne "vpelje" v delovanje, po nekaj urah pa naj bi svetila normalno....

Citirano iz:
Troubleshooting
1 "Problem:
In many cases, especially for those cars that have Auto ""ON"" or Daytime Running Lights; one or both light cannot Ignite Initially, Discharge Bulb turns off after just start the car, or even sometimes, bulb just turns off when driving."
"Solution:
You MUST Disconnect the Daytime Running Light or Auto Switch ON function immediately before the actual HID Conversion. Due to the Steady levels of battery voltage is required at 12V or Plus before the initial Ignites of each HID Systems; you must prohibit the less voltage draw of car battery at HID s start time. Daytime Running Light is 7V or less power output, and auto switch on headlight is always turn on seconds right before the car to start the ignition to charge the battery, which means Battery is focus on charging the ignition and waiting for alternator to recharge it back to 12V. Therefore, in both situations, battery is drawing much less power than 12V to initially ignite the HID headlight. Please perform the following:
o if you have Daytime Running Light please follow your car s service manual; disconnect the fuse or wiring of Daytime Running lights only.
o If you have Auto Switch On Headlights, please switch the function to Manual Switch On headlights. To avoid further damages, always remember to start your engine before turn on the HID system! "
2 "Problem:
Just Installed the HID system a few weeks ago, everything works out fine with system. But lately, the one or both Discharge Bulbs are began to flickering when starts!?"
"Solution:
Disconnect all the connectors immediately. Clean every connector with alcohol. Wait more than 5 minutes (reset ballast Safety Stages Chip) then reconnect or reinstall every connector. Then check all the connection between ballast and factory harness (Power Source); check all the connection between igniters and bulbs (yellow silicone connectors); check your upgraded fuse, they must be 20amp minimum. Remember, every connector have to be 100% well connected to each other. Do not loss mating or mis-wiring any connections. "
3 "Problem:
Melted plastic burned onto the HID bulb, staining it. "
"Solution:
Do not touch the bulb at any time, especially when it is hot. "
4 "Problem:
Bubble created by melted glass from a high wattage (100W) bulb."
"Solution:
Do not use any bulb higher than 80 watts bulbs in your vehicle. "
5 "Problem:
Both HID bulbs keep flickering and making clicking noise."
"Solution:
1. See whether the HID bulbs have been connected to the ballasts correctly and tightly. 2. See whether the batteries of the car is too old or almost empty. 3. If your car's low beam has daytime running lights, make sure to disable that before installing the HID kit."
6 "Problem:
HID turns on then both sides go out."
"Solution:
It means the fuses are blown. Please check your fuses box according to your vehicle's user manual and upgrade the stock 10mA or 15mA headlight fuse to 30mA. "
7 "Problem:
HID will shut down itself sometimes."
"Solution:
Inside of the HID ballast, there is a micro chip which is used to detect whether there is any potential problem. Any potential problems such as sudden high impulse or shortage of power input from battery or extremely high heat will trigger the self-protect and shut the ballast off temporarily. It takes about 3 mins for the micro chip to reset itself and the ballast will be working again. Once this happens, please turn off the HID and wait about 3 to 5 mins.
Inspection Procedure: Please check the car battery. Check all connections between the bulb, ballast, & igniter. Check the vehicle battery terminal. "
8 "Problem:
Only one light works, although both lights are installed exactly the same."
"Solution:
1. The polarity of one side might not match with the stock harness. 2. Fuse might be blown on this side. 3. Malfunctioned parts.
Inspection Procedure: Check all connections between the bulb, ballast, & igniter. Check the bulb that does not work. Check the fuses. Use at least 30mA fuse if the stock 15mA fuse blows. Switch the failing bulb module to the working one to see if the problem remains. If the failing light now works, the bulb may be failed. If the problem still persists, the Ballast and/or Igniter may be malfunctioned. Check the Ballast and Igniter, switch it to the working side of the vehicle. If the problem still persists, the Ballast and/or Igniter is malfunctioned. If HID system works properly, your vehicle connections, battery, alternator, etc. may have problems. "
9 "Problem:
The ballasts make electric noise when first turn on."
"Solution:
This is very normal, the ballasts are absorbing powers from the battery to start up, that's why you hear electric noise."
10 "Problem:
HID will only work when the high beam is turn on."
"Solution:
This situation mostly happens H4 kit because it has three pong plug rather than just ""+"" and ""-"". Make sure you have plugged those three wires correctly to their positions. Usually the combination is Yellow, Black and Red."
11 "Problem:
HID works when the engine is off, but if turning on the engine the HID will turn off itself."
"Solution:
For some newer model cars such as 04 or UP BMW or 04 or UP Mercedes, the cars have onboard computers to restrict outsource components such as HID conversion kit or aftermarket MP3 Players. Therefore, the only way for such cars to install the HID kit is to directly plug the HID ballasts to the car's battery."
12 "Problem:
The HID bulbs changes color when first turn on."
"Solution:
This is totally normal. At the beginning, the ballasts are storing the power from the battery of the car. Since the power has not been stabilized yet, the bulbs will might have different colors or even flicker a little bit. However, as soon as the power is stabilized by the ballast, the bulbs will become normal. "
13 "Problem:
The colors or lighting effects of the two bulbs are different."
"Solution
1. The level of the two sizes' headlight housings are not even, to adjust the headlight housings, please check here. 2. For new bulbs, there are chances that the colors are different for first couple hours of burning. The color will turn into normal once after that.
Inspection Procedure: Inspect for damage in the light housing. Clean the lens of the light. Inspect the positioning of lights to ensure both are at the same angle to the road."

Res je. Ko sem sam zmontiral 4300K, je trajalo kar nekaj delovnih ur žarnice, da se je dobila lepo xenon svetlobo.

Prokarjon: Problem je lahko tudi ta... kateri je bil ze tudi veckrat ugotovljen preko
fotografij slikanih vozil s prizganimi xenon zarometi.

Inspect the positioning of lights to ensure both are at the same angle to the road.

Kajti ravno visina ene in druge lahko vpliva na barvno razliko... vendar pazi!
se vedno je leva bolj dol med tem ko desna melenkost visje. Preveri se kaksne
imas parabole.

Se nastavitev zarometov v slikovnem primeru
http://www.avtomobilizem.com/forum/view ... 085#610085

@Lumpy_: Torej tebi sta svetili obe žarnici enako vendar ne takoj dovolj lepo ali različlno?

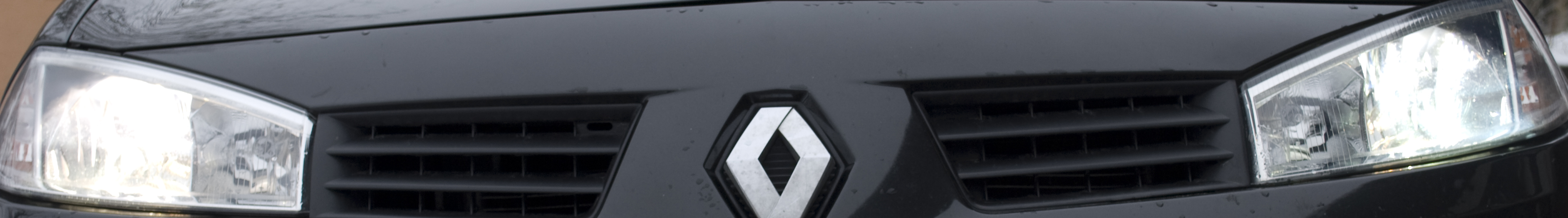

@MacTron: Dvomim da je višina snopa različna (oz. nastavitev), ker že žarnica ko jo pogledaš notri direkt ko sveti, se vidi da je ena malenkost plavkasta.

Štartata sicer obe zelo modro in se nato hitro spreminjata v belo. Ena se postavi že na skoraj rumeno barvo medtem ko druga ostane malenkostno plavkasta. (verjetno sicer tega ne bi opazil, tako ko pa obe pogledaš se pa opazi razlika)

Men sta obe enako svetili od začetka pa rumenkasto, kot da bi imel halogenke. Možno, da je ena žarnica že nekj ur skozi dala, pa je zato plavkasta. Kaj pa vem. Druge razlage nimam. Ali pa tud ne. Počakaj 2-3 tedne, odvisno kolko se voziš, pa potem primerjaj.

Samo ne vsak dan gledat, ker se ti bo zdelo da ni razlike še po 2 mescih hehe

Ja, mogoče bi znalo bit res da je ena že nekaj več oddelala od druge (glede na to da sem kupil kvazi "novo" rabljeno).


Sem pa poizkusil pustiti luči prižagne cca 10min in po tem pretečenem času je razlika že manjša, a kljub temu opazna od blizu...

... me pa moti

Pri fotru je pa na začetku ena luč utripala par sekund preden se je zagrela, zaj je pa nehala

Se pravi znajo bit poporodni krči...

Torej bistvo mojega razmišljanja... če je že kaj za zamenjat je to prej žarnica kot balast?!?!? Ali se motim?

Ja.
Lahko pa probaš. Menjaš žarnici, tisto z desne luči v levo in obratno pa boš videl.

Lumpy_ je napisal/-a:Ja.
Lahko pa probaš. Menjaš žarnici, tisto z desne luči v levo in obratno pa boš videl.

Hehe... se vidi da ne veš kako je pri meganu in hvala bogu da ne veš...
Moram dat dol cel branik in še luči

Ampak bom točno to naredu, ker mam filing da bo to skos tako. Mislim, da je kar slaba žarnica.

lahko je ena ena žarnica slaba ali pa nista obe enakih barvnih temperatur - ena 4300K druga pa 5000K ali mogoče 6000K.

Sej sem se odločil da naročim eno novo. Drugače pa na obeh na listku piše 4300K...

A se nea govori da oni navadni balasti imajo odstopanje od barve svetlobe- levi desni,da zato pa ta novi digitalni balasti pa so kao čisto brez odstopanj

Zois je napisal/-a:A se nea govori da oni navadni balasti imajo odstopanje od barve svetlobe- levi desni,da zato pa ta novi digitalni balasti pa so kao čisto brez odstopanj

Jaz naj bi imel že digitalne balaste.

Sem pa zdajle zamenjal celo levo in desno luč med sabo in še vedno ena in ista žarnica sveti preveč modro in malenkost premalo... naročil bom novo žarnico pa bom videl kako bo...


A mogoče kdo ve kje dobiti čim hitreje vsaj eno H7R žarnico?????

barva je določena z lastnostmi žarnice, tko da balast tle ne igra neke vloge pri barvi.

sicer pa je tko preveril z menjavo žarnic med seboj.

lp. mene pa zanima zakaj še vedno tlačite te xsenone not,če so prepovedani? pa ne me zdej napadat

RSI je napisal/-a:lp. mene pa zanima zakaj še vedno tlačite te xsenone not,če so prepovedani? pa ne me zdej napadat

Ni vse kar je prepovedano zato tudi slabo...

Prokarjon je napisal/-a:

RSI je napisal/-a:lp. mene pa zanima zakaj še vedno tlačite te xsenone not,če so prepovedani? pa ne me zdej napadat

Ni vse kar je prepovedano zato tudi slabo...

zato jih tlacjo not da motijo nasproti vozeca vozila
